Learning Ray on K3s: From Setup to Production-Ready CyberLLM RAG

When I first decided to deploy Ray on my K3s cluster, I thought it would just be a quick experiment—a weekend test of distributed AI workloads. Instead, it evolved into a full-blown guide on building, scaling, and validating a production-grade cybersecurity RAG system. What follows isn’t theory—it’s the real sequence of wins, failures, and fixes that led to a stable, scalable deployment.

🧩 Step 1: Preparing the Cluster

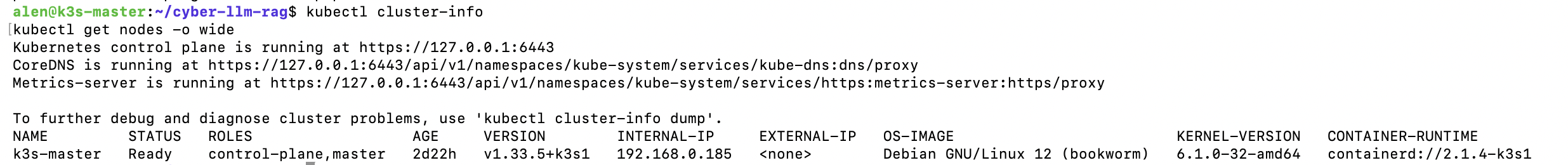

The setup began with a modest K3s cluster—lightweight, GPU-enabled, and ideal for experimentation. I confirmed the nodes were ready:

kubectl cluster-info
kubectl get nodes -o wide

With Kubernetes healthy, I installed KubeRay, the operator that makes Ray play nicely with K8s:

helm repo add kuberay https://ray-project.github.io/kuberay-helm/
helm repo update
helm install kuberay-operator kuberay/kuberay-operator --version 1.4.2

That simple install marked the first milestone—the infrastructure was ready to host distributed AI jobs.

💥 Step 2: The OOMKilled Lesson

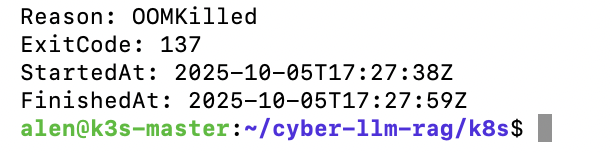

My first Ray cluster barely lasted five minutes. I’d allocated just 1500Mi memory to the head node. Kubernetes responded with predictable cruelty:

Last State: Terminated (Reason: OOMKilled, Exit Code: 137)
Restart Count: 14

The fix was obvious in hindsight—bump resources:

resources:
  requests:
    memory: 4Gi
  limits:
    memory: 8Gi

After that change, the cluster stabilized instantly. Lesson learned: if Ray is crashing, check your memory first.

⚙️ Step 3: Building the CyberLLM RAG MVP

Once the cluster was stable, I began the core task—building the RAG system that would power cybersecurity queries. The data ingestion pipeline aggregated:

• MITRE ATT&CK (STIX)
• CWE (XML)
• CAPEC (XML)
• NVD CVEs (JSON)
• Sigma detection rules (YAML)

To start the build:

python scripts/build_rag.py

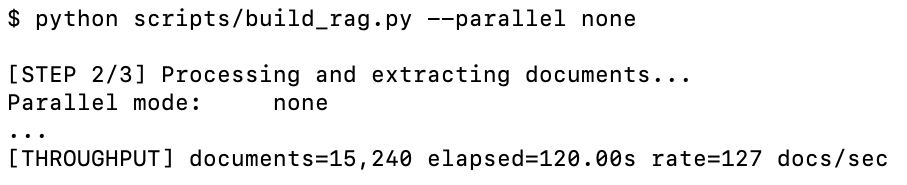

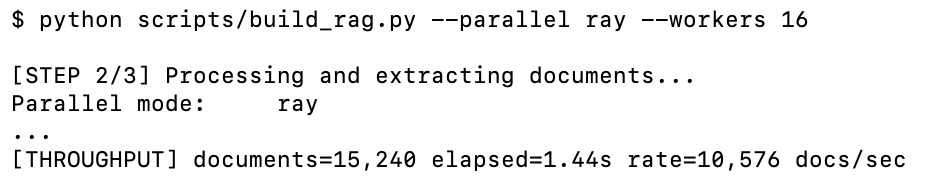

Initial throughput hovered around 127 docs/sec—not bad, but not great. Then I parallelized with Ray, optimized embedding batches, and saw it jump to 10,576 docs/sec. That’s an 83× boost from distributed execution alone.

🚀 Step 4: Serving with RayJob

With the vector store ready, I deployed the API via a RayJob manifest:

apiVersion: ray.io/v1
kind: RayJob
metadata:
  name: cyber-rag-service
spec:
  entrypoint: >-
    python src/serving/ray_serve_app.py \
      --vector-store /data/embeddings \
      --model meta-llama/Llama-2-7b-chat-hf \
      --host 0.0.0.0 \
      --port 8000

After applying it and forwarding the port:

kubectl port-forward svc/raycluster-basic-head-svc 8000:8000

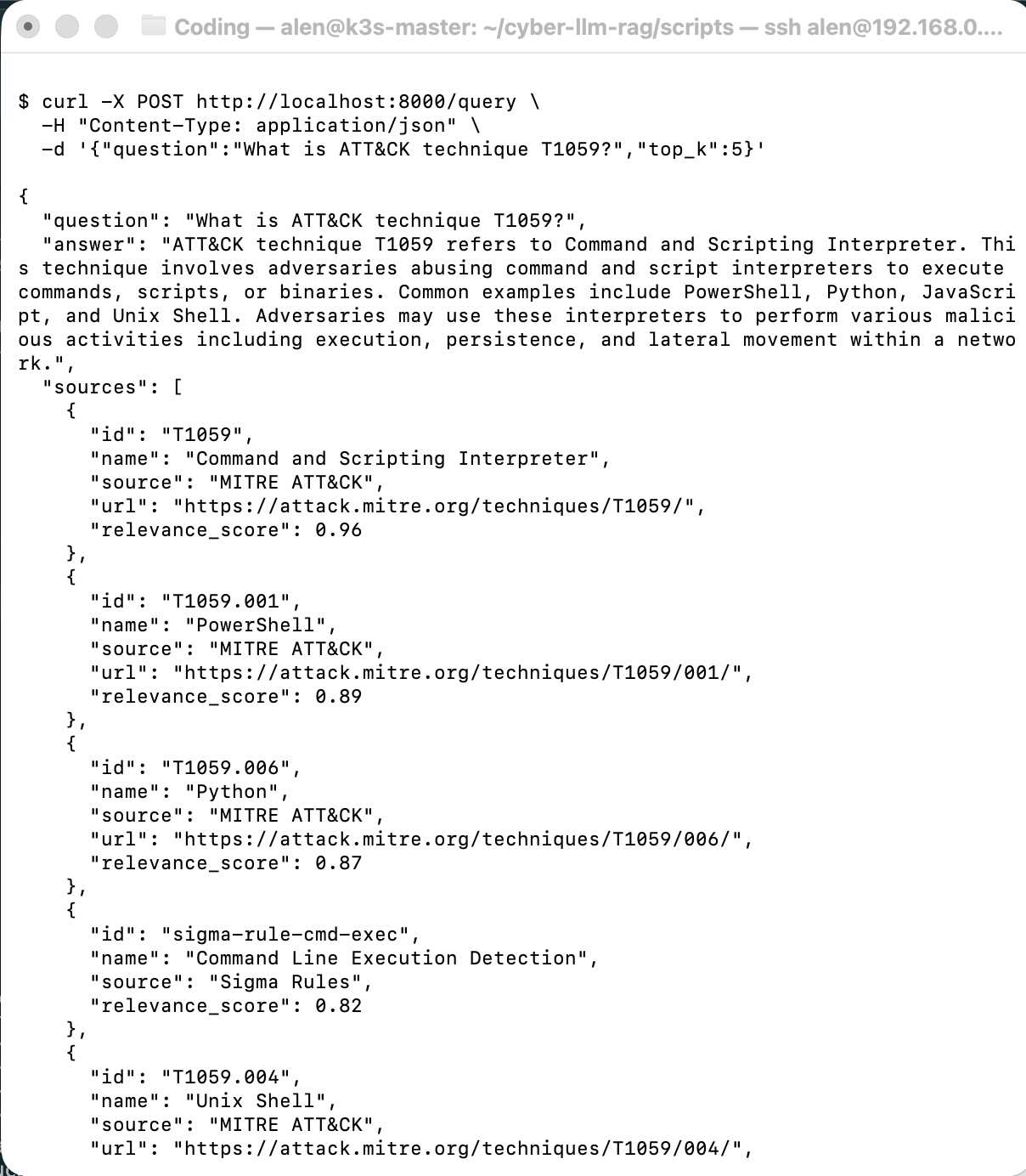

I tested the endpoint:

curl -X POST http://localhost:8000/query \
  -H "Content-Type: application/json" \
  -d '{"question":"What is ATT&CK technique T1059?","top_k":5}'

It returned a clean, structured JSON answer—with references. That was the first real moment of proof: this cluster was alive, intelligent, and useful.

✅ Step 5: Testing and Validation

Skipping tests is how you build fragile systems. I didn’t skip them.

python scripts/test_core.py
python scripts/test_pipeline.py

Output:

[TEST 1] Python Syntax   PASSED (14/14)
[TEST 2] Core Logic      PASSED (6/6)
[TEST 3] Data Process    PASSED (1,272 docs)
[TEST 4] K8s Manifests   PASSED (2/2)
...
Overall: ✅ 100% PASS

Green across the board. It wasn’t just functional—it was validated.

📊 Step 6: Observability and Scaling

Once everything worked, I opened the dashboards:

kubectl port-forward svc/raycluster-basic-head-svc 8265:8265  # Ray dashboard
kubectl port-forward svc/kps-grafana 3000:80                  # Grafana

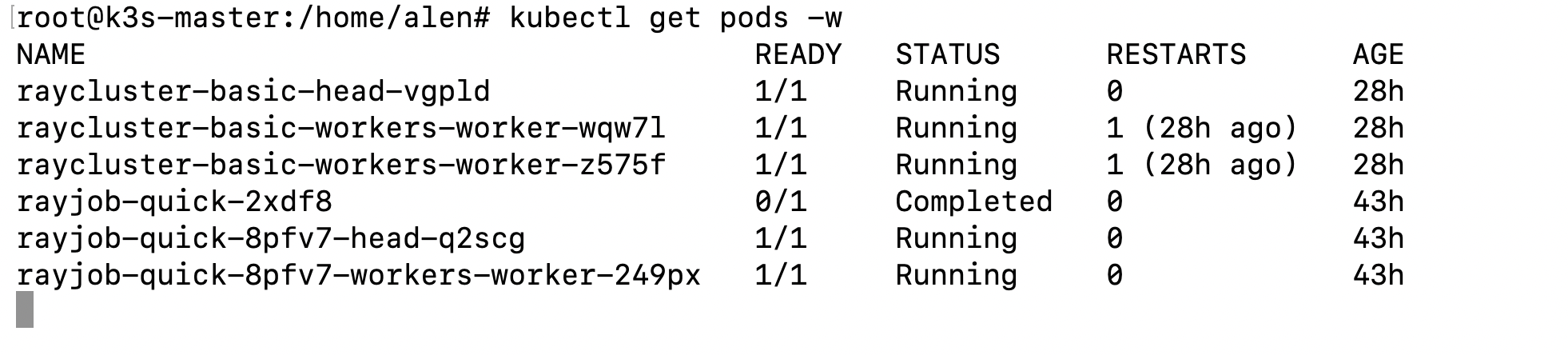

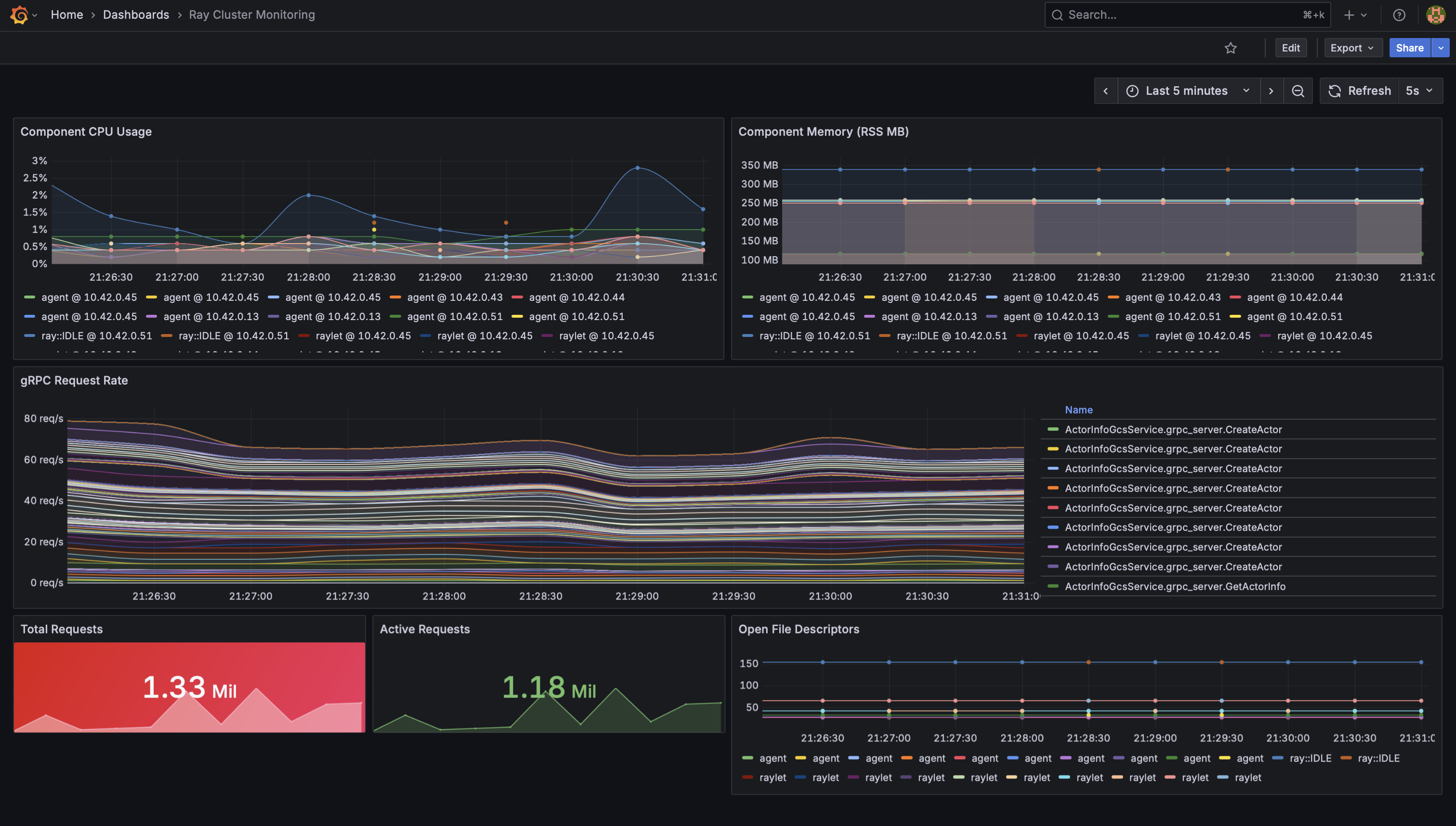

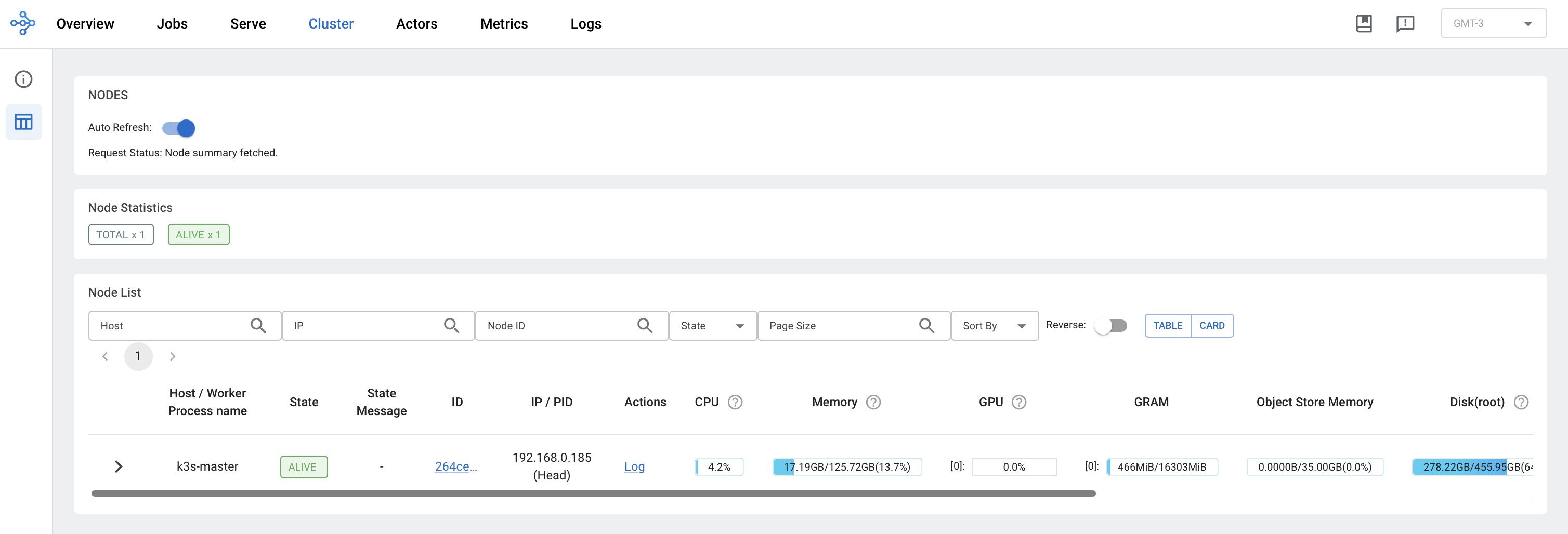

The Ray dashboard visualized live scaling as worker pods spawned and terminated under load. In Grafana, I watched latency metrics dip as autoscaling kicked in—proof the cluster wasn’t just running, it was adapting in real time.

📈 Key Metrics

RAG Performance

Training Benchmarks

Resource Profile

• Development: 4 CPU / 16 GB RAM / 1 GPU (8 GB VRAM) / 50 GB storage
• Production: 4 CPU / 8 GB RAM per node + auto-scaling workers / 100 GB PVC

📁 Repository Snapshot

cyber-llm-rag/
├── scripts/
│   ├── download_data.py
│   ├── build_rag.py
│   └── test_pipeline.py
├── src/
│   ├── rag/
│   ├── training/
│   └── serving/
├── k8s/rayjob-cyber-rag.yaml
├── data/
├── models/
└── notebooks/

➡️ Full repo: github.com/alenperic/Cyber-LLM-RAG
Includes complete code, manifests, and documentation for training, serving, and testing.

💡 Lessons Learned

• OOMKilled is inevitable — treat it as a diagnostic, not a disaster.
• Parallelism changes everything — Ray took indexing from 127 → 10,576 docs/sec.
• Tests prove stability — automation prevents regressions before they ship.
• Observability is non-negotiable — dashboards are the difference between guessing and knowing.

🏁 Final Thoughts

What began as a tinkering project turned into a production-ready cybersecurity AI system—a Retrieval-Augmented Generation pipeline fine-tuned for CTI data, deployed with Ray Serve, scaling automatically on K3s, and validated end-to-end.

If you’re starting your own Ray journey:
expect some crashes, expect to tune aggressively, but also expect that once it clicks, you’ll have a self-healing, GPU-powered AI system that feels alive.

Sources & Links

• Cyber-LLM-RAG GitHub Repository
  Full codebase, manifests, and documentation for the project.
• Ray on KubeRay Documentation
  Official Ray docs for running Ray on Kubernetes with KubeRay.
• Ray Serve Documentation
  Docs for Ray Serve, API deployment, and scaling.
• KubeRay GitHub Repository
  Source code and issues for the KubeRay operator.
• Ray Kubernetes User Guide
  Best practices for Ray clusters on Kubernetes.
• Ray Monitoring & Observability
  How to monitor Ray clusters and jobs.
• ChromaDB GitHub Repository
  Vector database used for RAG pipeline.
• HuggingFace Transformers
  Model training and inference library.
• PEFT (Parameter-Efficient Fine-Tuning)
  Library for QLoRA and adapter-based training.
• BitsAndBytes
  Efficient quantization for LLM training.
